Leírás

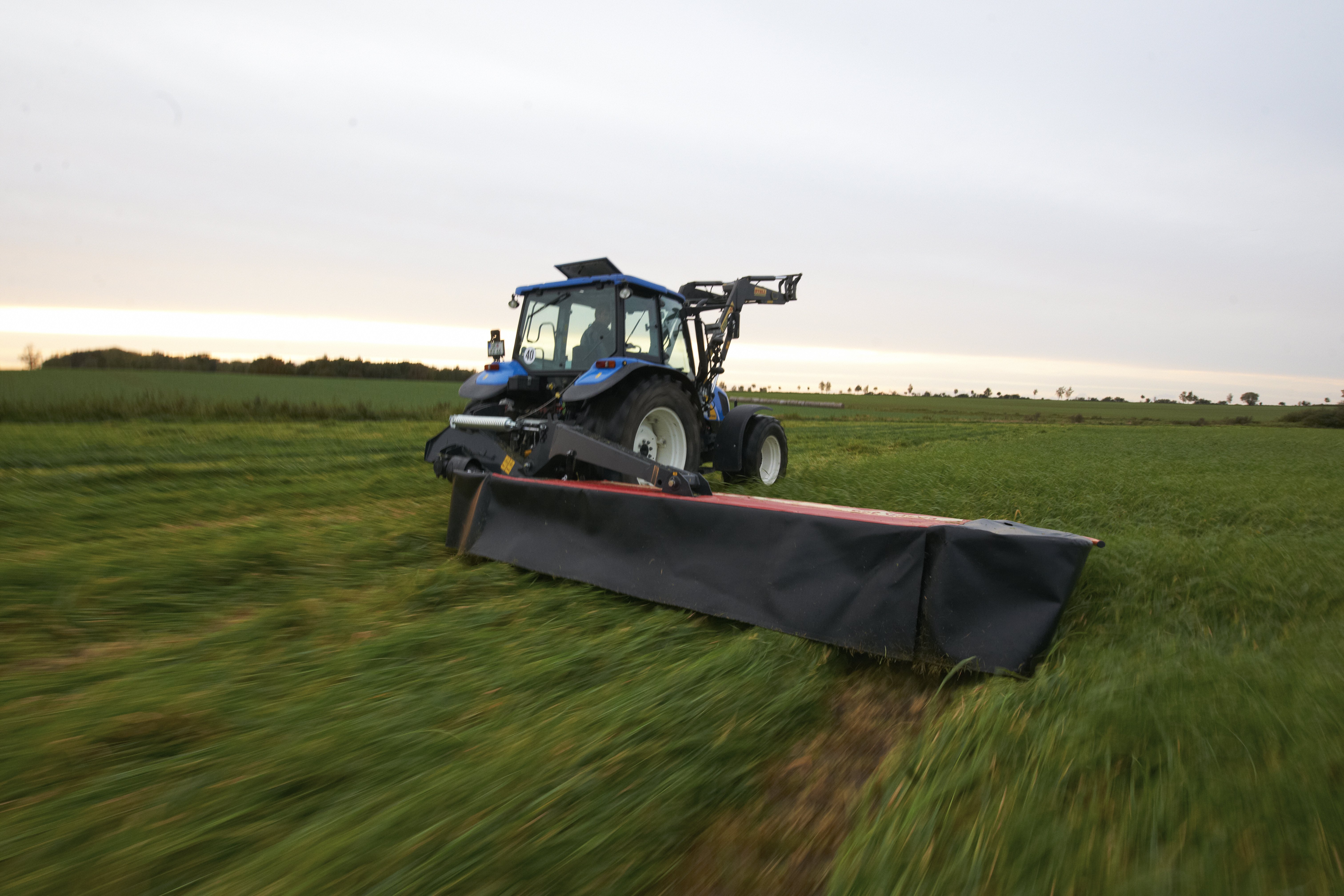

A Vicon Extra 300-s sorozat 2,8-3,94 m munkaszélességű hátsó függesztésű tárcsás fűkaszáinak letisztult függesztőmű kialakítása, alacsony súlyt és minimális teljesítményigényt biztosít, így ideális a kisebb traktorokkal rendelkező gazdálkodók számára. A nagyméretű kompenzáló rugó a központi felfüggesztéssel kombinálva tökéletes súlyelosztást biztosít a kaszagerendely teljes szélességében. A vágószerkezet maximális védelmét a NonStop BreakAway biztonsági rendszer látja el. Külön opcióként a talajnyomást, akár menet közben, hidraulikusan is be lehet állítani. Egyszerű és könnyű!
Jellemzők
Jellemzők

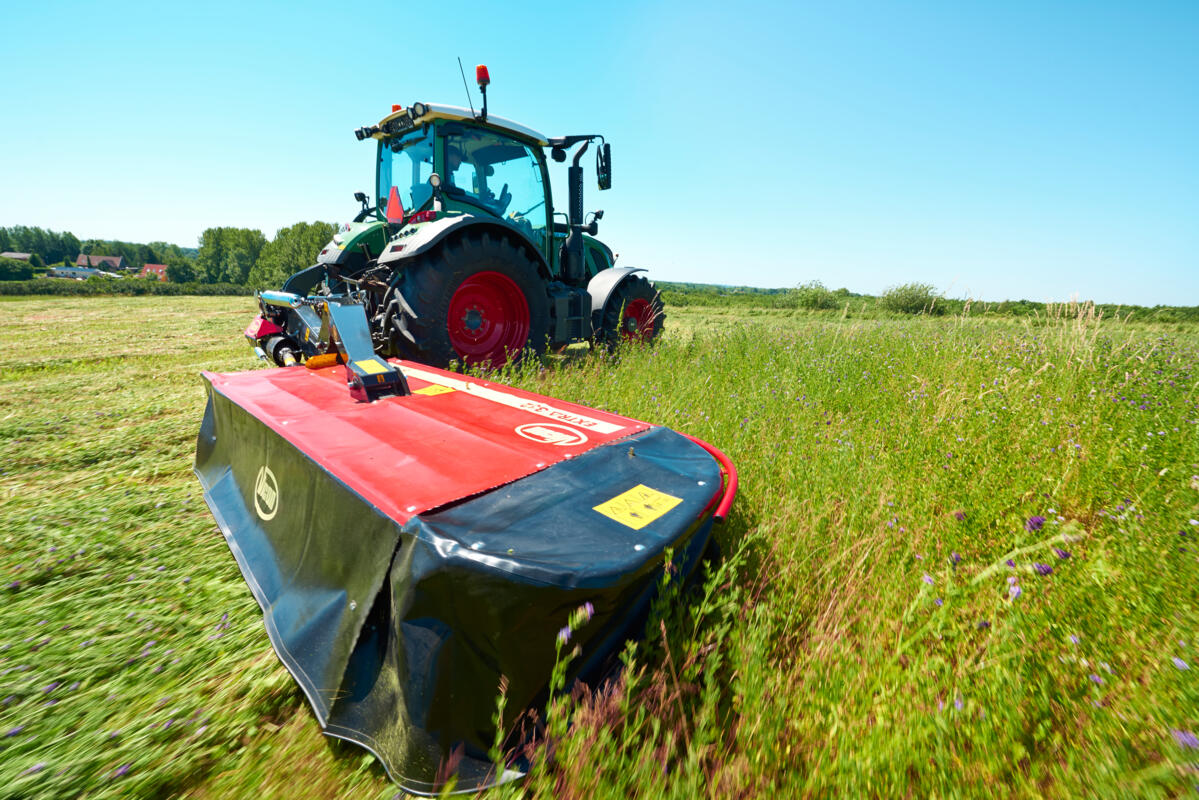

- The EXTRA cutterbar is designed for low maintenance and offers a very quiet operation.
- Operators will immediately love the virtually quiet operation of the new cutterbar – convenient during a long and busy working day
- Fully welded cutterbar for a very strong construction.
- Even number of contrarotating discs for improved overlap.
- Three bladed discs for more cuts.
- Smooth stone guard design for excellent cutting quality.
- High oil capacity ensuring low working temperature.
- Low noise level thanks to specially tooled gear wheels.
- Twisted knives for a clean cut in all conditions.

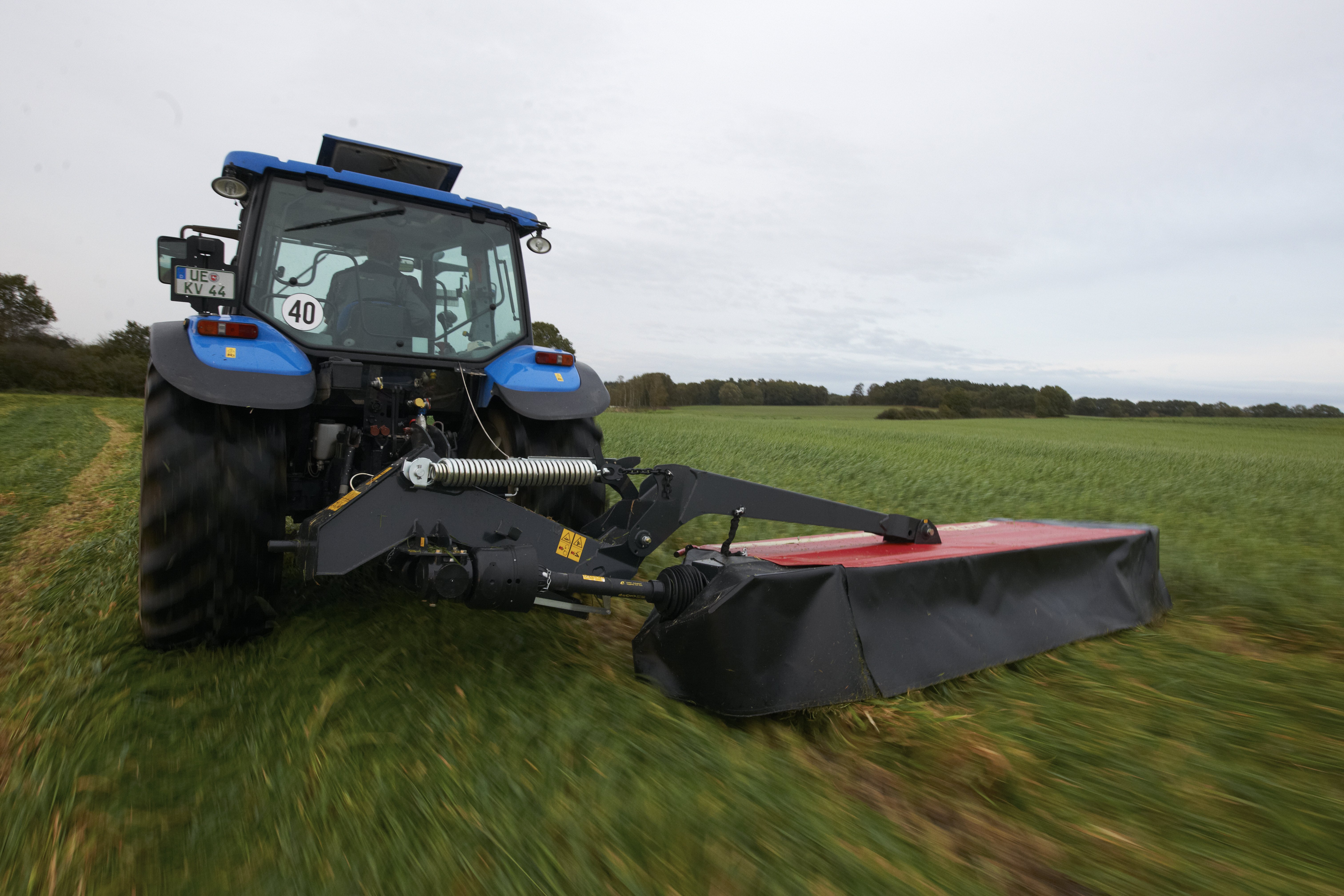

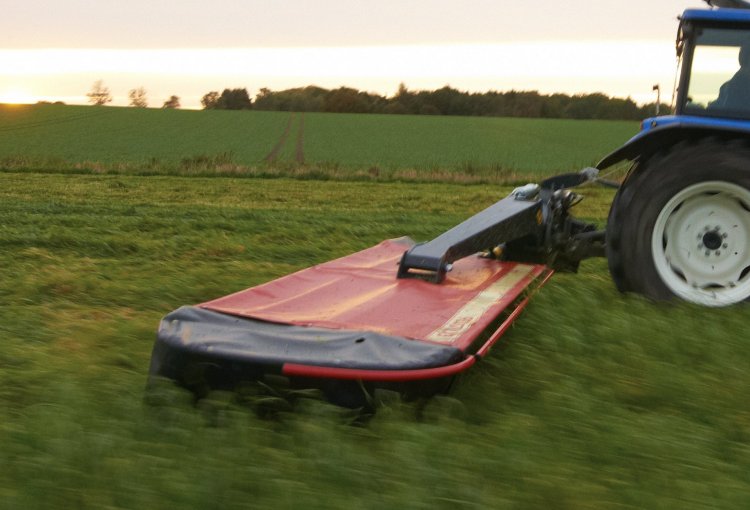

The centre pivot suspension provides an even weight distribution of the EXTRA 300 series, 400H, 624T and 628T and a uniform ground pressure over the complete working width, ensuring good ground contour following.
The mowing units are suspended in the centre of gravity. This design provides a constant, faster and more precise adaptation to ground contours.
The benefit is less skid wear, optimum protection of the stubble and less fuel consupmtion
- To offer maximum protection of the cutterbar, these machines are fitted with the well-known Vicon BreakAway solution.
- When encountering an obstacle, the BreakAway will swing the machine backwards and over the obstacle, returning it to the original working position once the obstacle has been passed

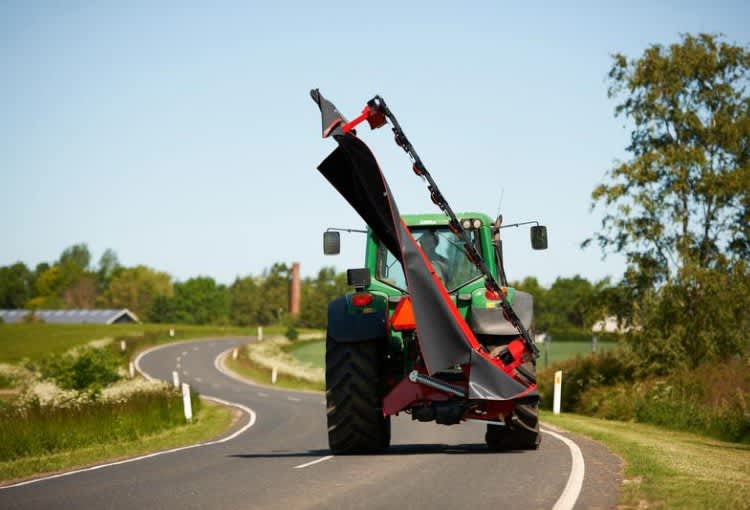

- EXTRΔ 300 series, 624T and 628T are folded into a vertical transport position up to 125°.
- The low gravity point during transport, with the weight of the mower close to the tractor, provides an excellent weight distribution, even during high speed road transport, and the machine is fixed by the hydraulic lifting arm.
- In addition transport height is limited, so passing through narrow gateways or under bridges is not a problem.

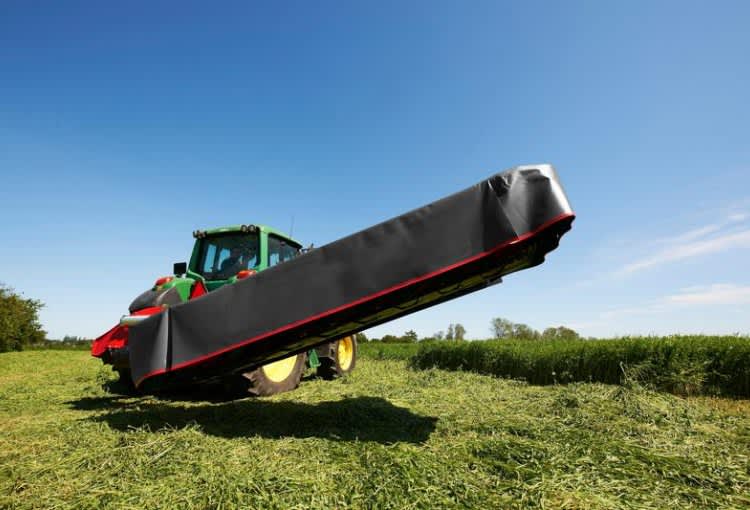

- Another benefit is that the hydraulic cylinder also supports quick lifting of the mower from working to headland position.
- The machines also offer a large degree of operating adaptability, as they are factory fitted with the option of being operated with either 540 or 1000 rpm.
- It requires no additional accessory. All that is needed is to turn the main gearbox on the suspension 180°.
Műszaki adatok
Műszaki adatok
Prospektus letöltés| Modell EXTRA | 328 | 332 | 336 | 340 | |
|---|---|---|---|---|---|
| Munkaszélesség m(ft) | 2.84(9'4") | 3.18(10’5”) | 3.50(11'6") | 3.94(12'11) | |
| Szállítási szélesség (m) | 2.3 | 2.3 | 2.3 | 2.3 | |
| Szállítási magasság (m) | 2.8 | 3.3 | 3.7 | 3.7 | |
| Függesztés (CAT) | 2/3 | 2/3 | 2/3 | 2/3 | |
| TLT (1/min) | 540/1000 | 540/1000 | 540/1000 | 540/1000 | |
| Min. TLT teljesítményigény (kW/LE) | 37/50 | 40/55 | 44/60 | 51/70 | |
| Tárcsák és kések száma | 8/24 | 8/24 | 10/30 | 10/30 |
Műszaki adatok
Műszaki adatok
Prospektus letöltésWorking Width |
Weight |
Power Req, Min |
|
EXTRA 336 |
3.60m |
775kg |
47/65 kW/hp |
